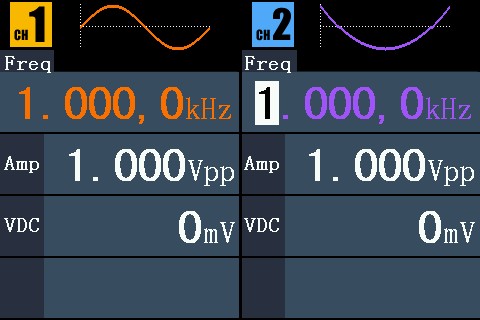

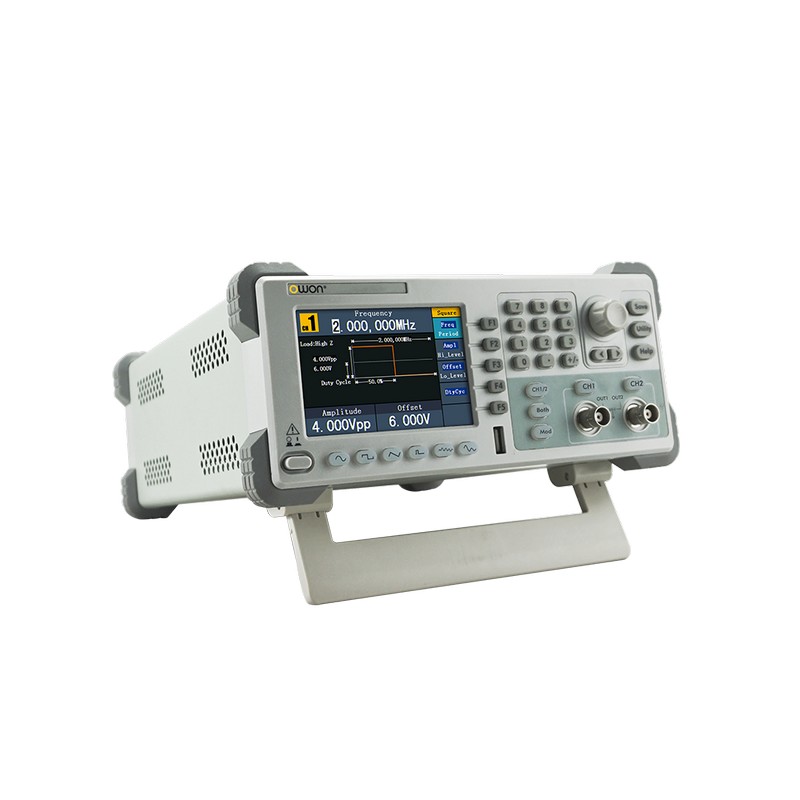

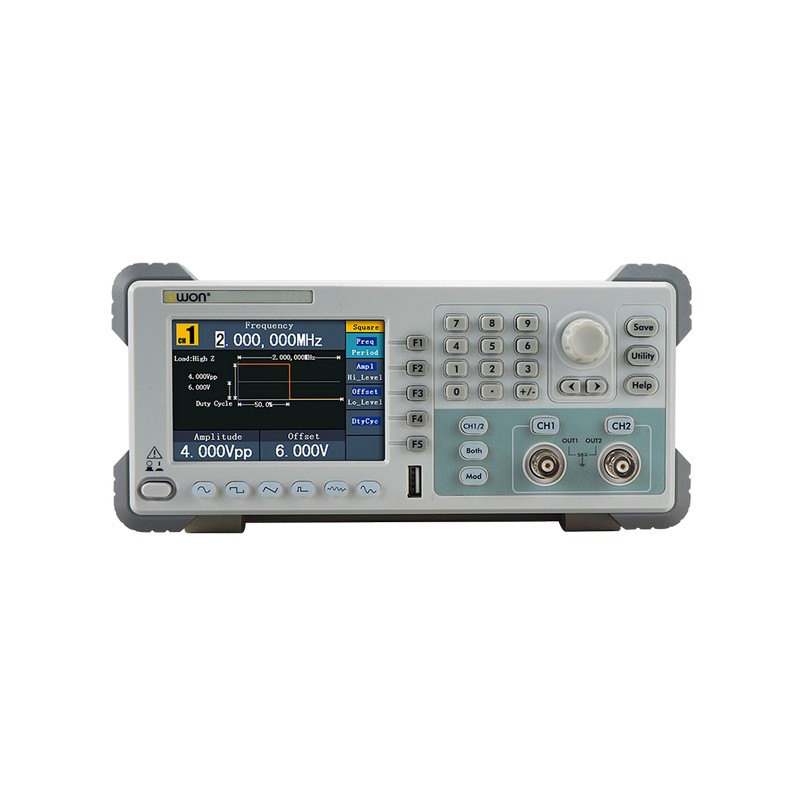

1. Dual Channel Equivalent Output
Dual equivalent channel output. Waveform and status copy can be implement between channels, frequency/amplitude/phase coupling.

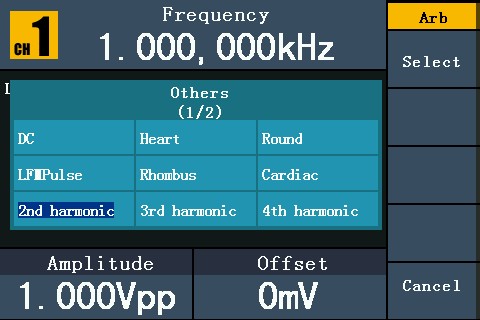

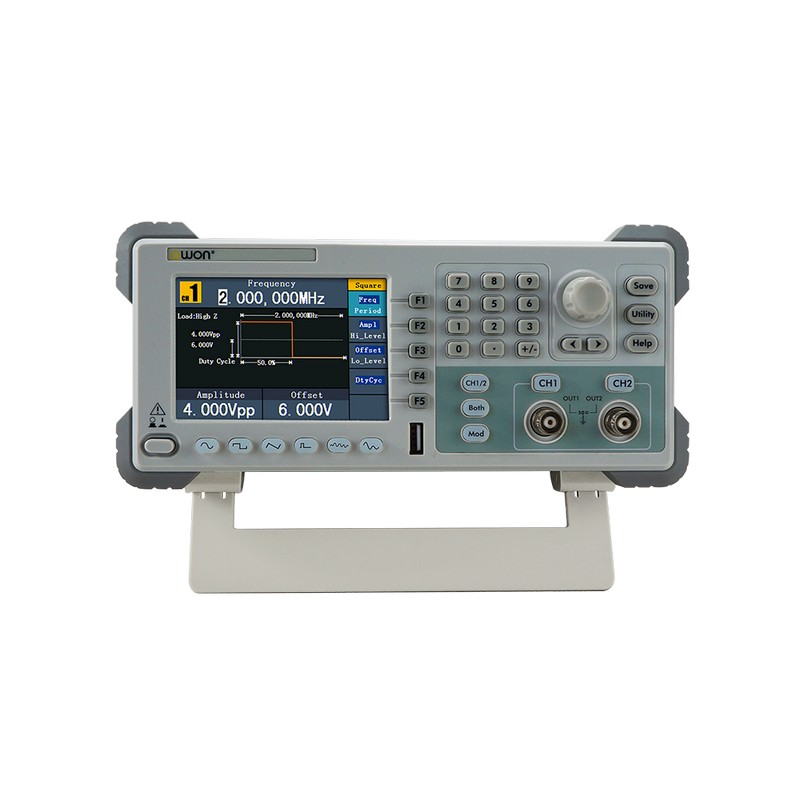

2. Build-in 45 arbitrary waveforms
Build-in educational/industrial common waveforms and divide it into common, math, engineer, window, other types.
Specifications
| Model |
AG1012 |
AG1022 |
| Channel |
dual |
| Frequency Output |
10MHz |
25MHz |
| Sample Rate |
125MS/s |
| Vertical Resolution |
14 bits |
| Waveform |
| Standard Waveform |
Sine, Square, Pulse, Ramp, and Noise |
| Arbitrary Waveform |
Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform |
| Frequency (resolution 1μHz) |
| Sine |
1μHz - 10MHz |
1μHz - 25MHz |
| Square |
1μHz - 5MHz |
| Pulse |
1μHz - 5MHz |
| Ramp |
1μHz - 1MHz |
| Noise |
25MHz (-3dB) (typical) |
| Arb |
1μHz - 10MHz |
| Amplitude |
| Amplitude |
1mVpp - 10Vpp (50Ω), 1mVpp - 20Vpp (high impedance) |
| Resolution |
1m Vpp or 4 digits |
| DC Offset Range (AD+DC) |
±5V (50Ω), ±10V (high impedance) |
| DC Offset Range Resolution |
1mV or 4 digits |
| Load Impedance |
50Ω (typical) |
| Arbitrary Waveform |
| Wave Length |
2 pts to 8K pts |
| Non-volatile Memory |
64M byte |

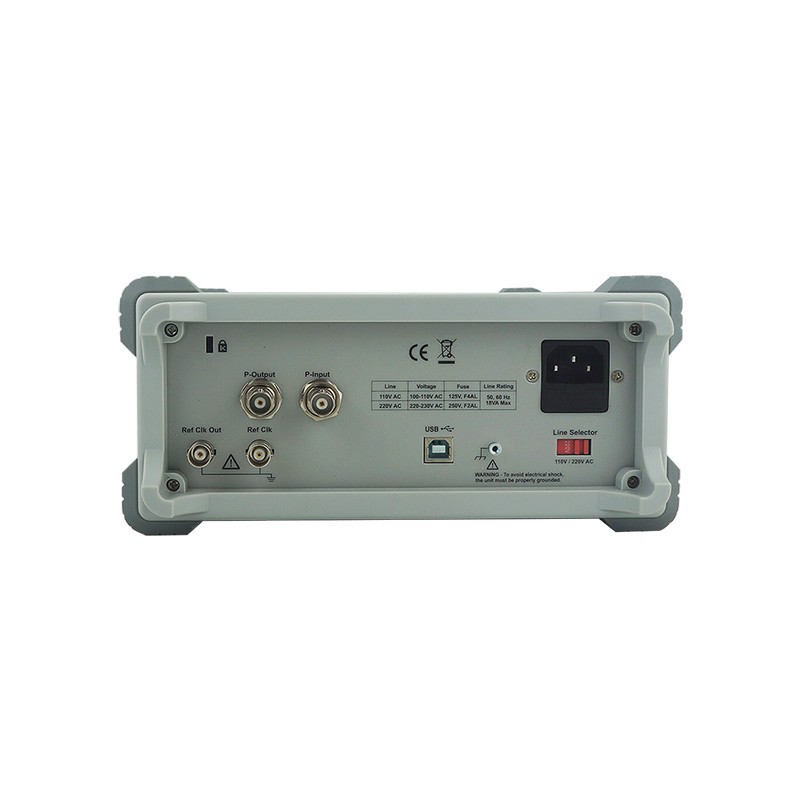

| Power Amplifier Module (optional) |
| Input Impedance |
50 kΩ |
Output Impedance |
<2 Ω |
| Max Input Voltage |
2.2Vpp |
Gain |
X 10 |
| Max Output Voltage |
22 Vpp |
Offset |
<7% |
| Output Slew Rate |
10V/us |
Bandwidth (at full power) |
DC 100kHz |
| Max Output Power |
10 W |

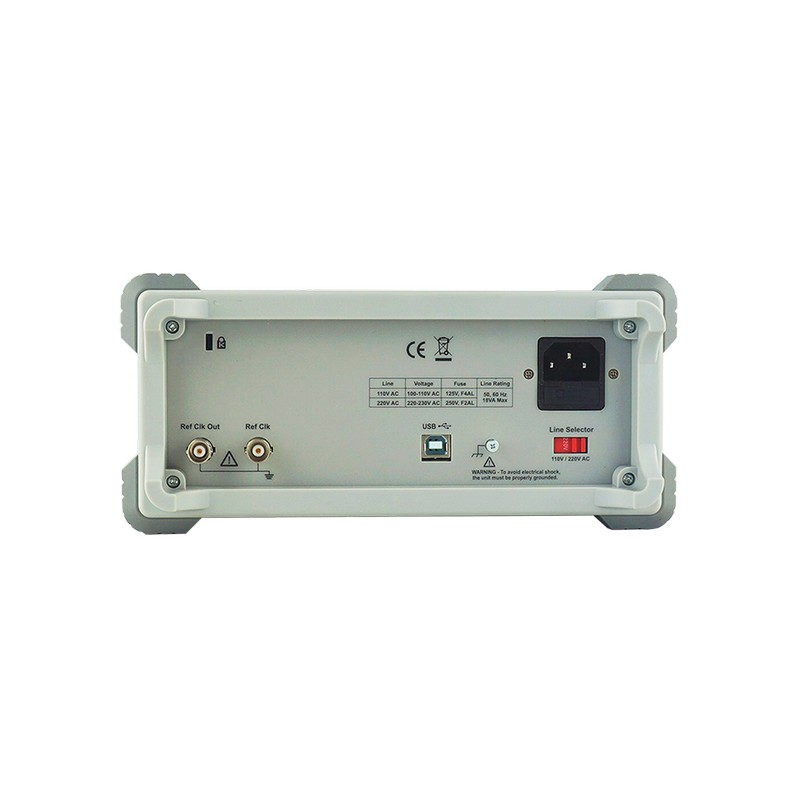

| Input / Output |
| Display |
4 inch (480 × 320 pixels) LCD |
| Type |
external reference clock input / output |
| Communication Interface |
USB host, and USB device, RS232 (option) |
| Mechanical |
| Dimension (W×H×D) |
235 × 110 × 295 (mm) |
| Device Weight |
3.00 kg |

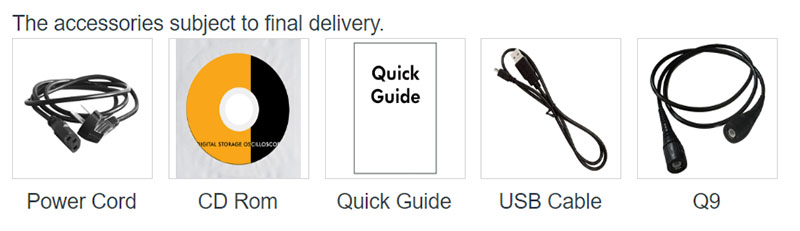

Accessories
