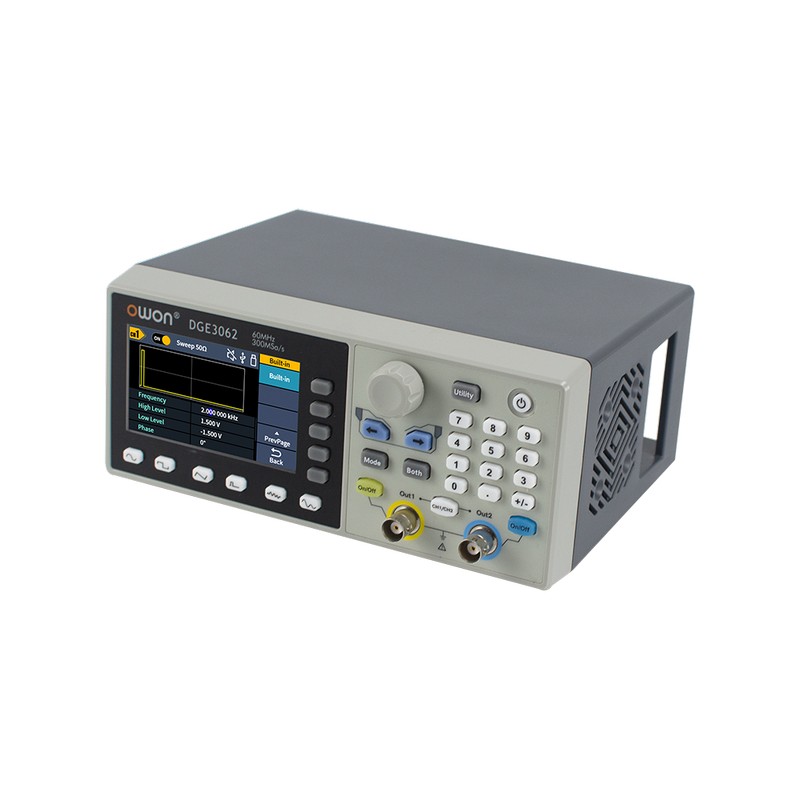

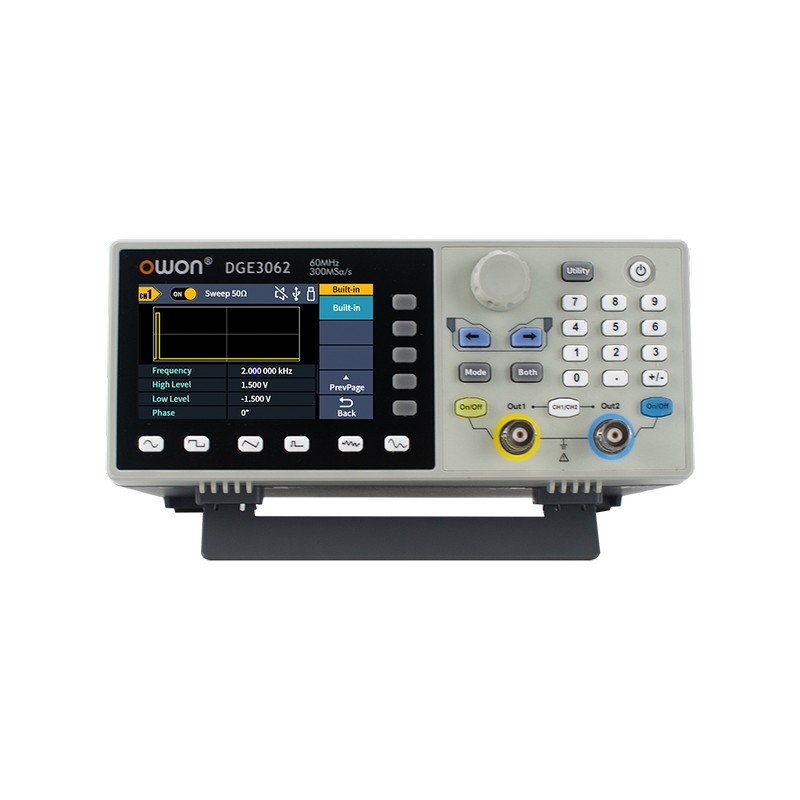

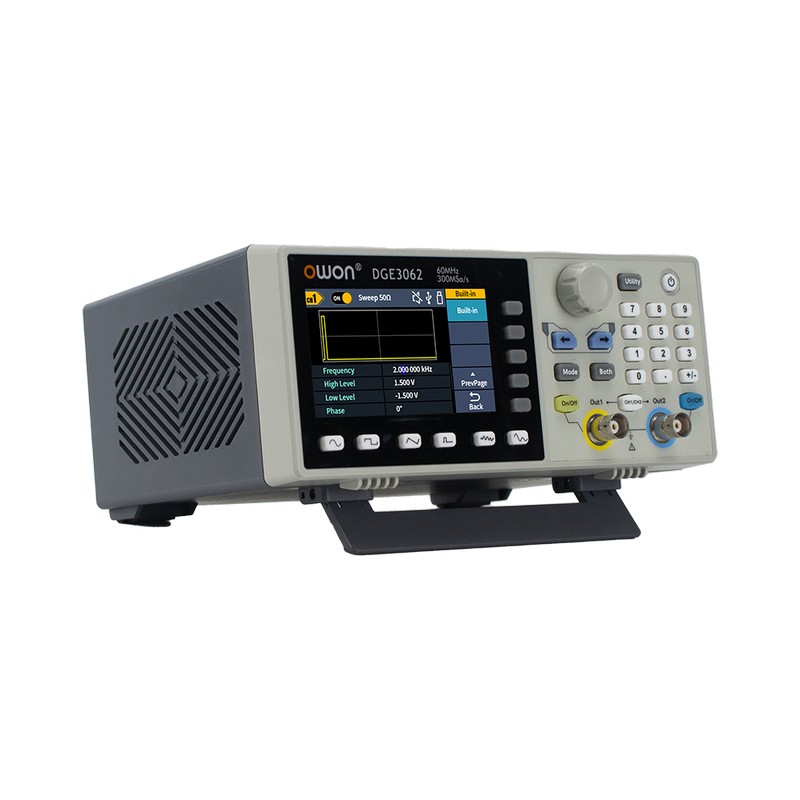

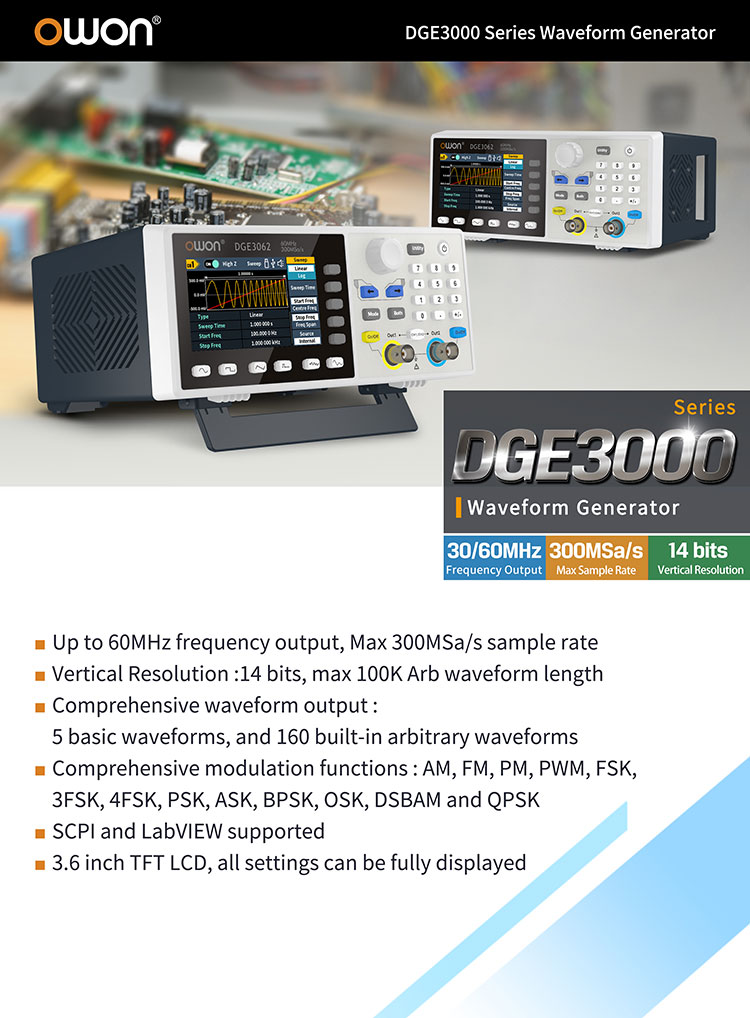

Specifications
|
Model
|
DGE3032
|
DGE3062
|
|
Channel
|
2
|
|
Frequency Output
|
30MHz
|
60MHz
|
|
Sample Rate
|
125MSa/s
|
300MSa/s
|
|
Vertical Resolution
|
14 bits
|
|
Waveform
|
|
Standard Waveform
|
sine, square, pulse, ramp, noise
|
|
Arbitrary Waveform
|
exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 160 built-in waveforms
|
|
Frequency (resolution 1μHz)
|
|
Sine
|
1μHz-30MHz
|
1μHz-60MHz
|
|
Square
|
1μHz ~ 15MHz
|
1μHz ~ 20MHz
|
|
Pulse
|
1μHz ~ 15MHz
|
1μHz ~ 20MHz
|
|
Ramp
|
1μHz ~ 1MHz
|
1μHz ~ 2MHz
|
|
Noise
|
20MHz (-3dB，typical)
|
|
Arbitrary Waveform
|
1μHz ~10MHz
|
|
Arbitrary
|
|
Waveform Length
|
2 points – 100K points
|
|
Sample Rate
|
125MSa/s
|
300MSa/s
|
|
Amplitude
|
|
into 50Ω load
|
1mVpp ~ 10Vpp（≤10Hz）
1mVpp ~ 5Vpp （≤60MHz）
|
|
DC Offset Range
（AD+DC）
|
±(10 Vpk – Amplitude Vpp/2) high resistance
±(5 Vpk – Amplitude Vpp/2) 50 Ω
|
|
DC offset resolution
|
1mV or 4digits
|
|
Load Impedance
|
50Ω (typical)
|
|
DC offset Accuracy
|
±(1 % of |setting| + 1 mV + amplitude Vpp * 0.5%)
|
|

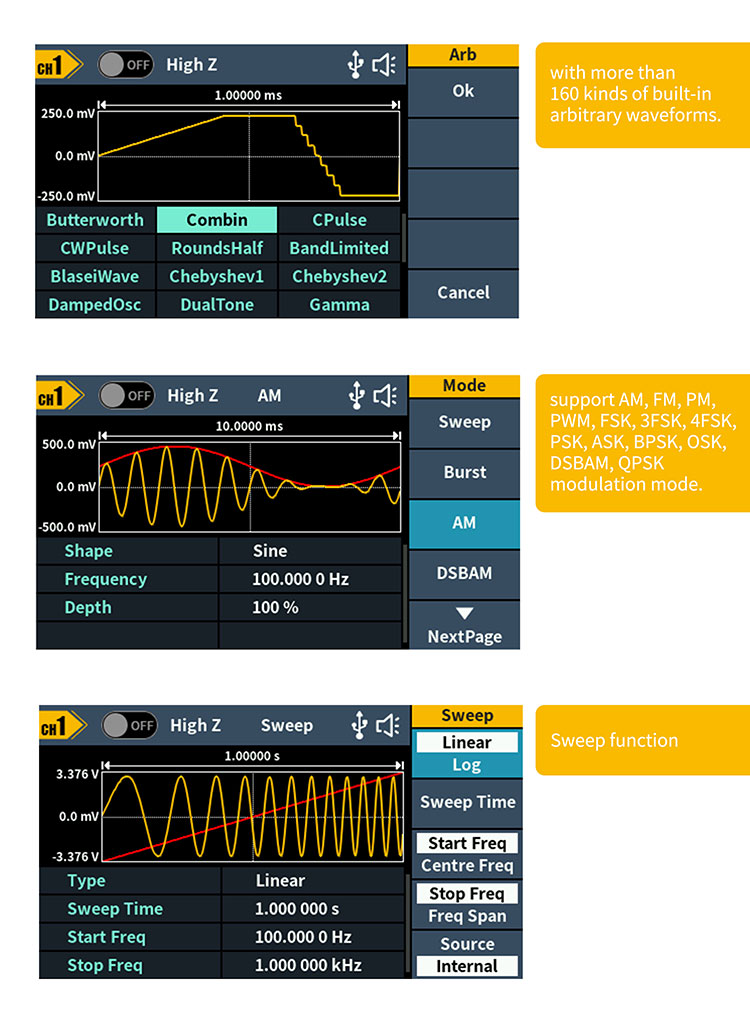

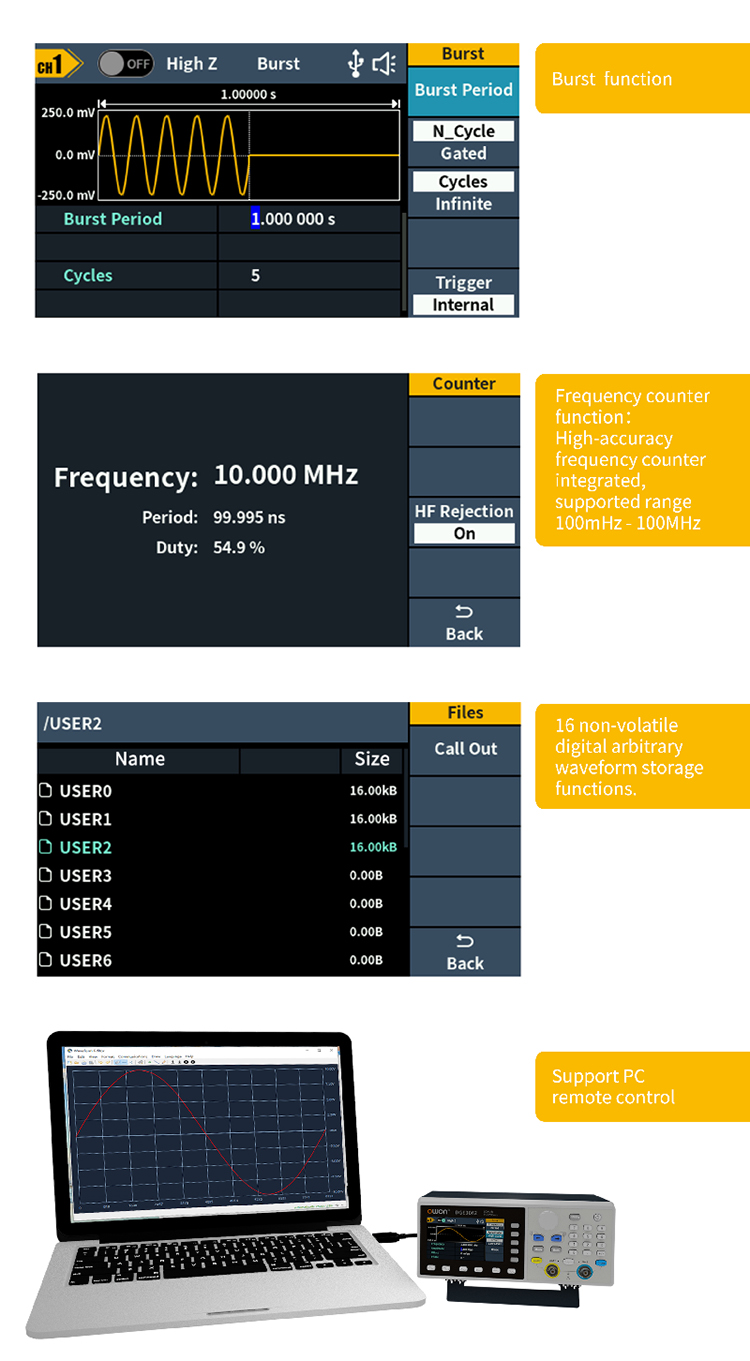

Modulation
|
|
Type
|
AM、FM、PM、PWM、FSK、3FSK、4FSK、PSK、ASK、BPSK、OSK、DSB-AM、QPSK、SUM、Sweep、Burst
|
|
Frequency Counter
|
|
Function
|
Frequency， period
|
|
Frequency Range
|
100mHz ~ 100MHz
|
|
Frequency Resolution
|
6 digits
|
|

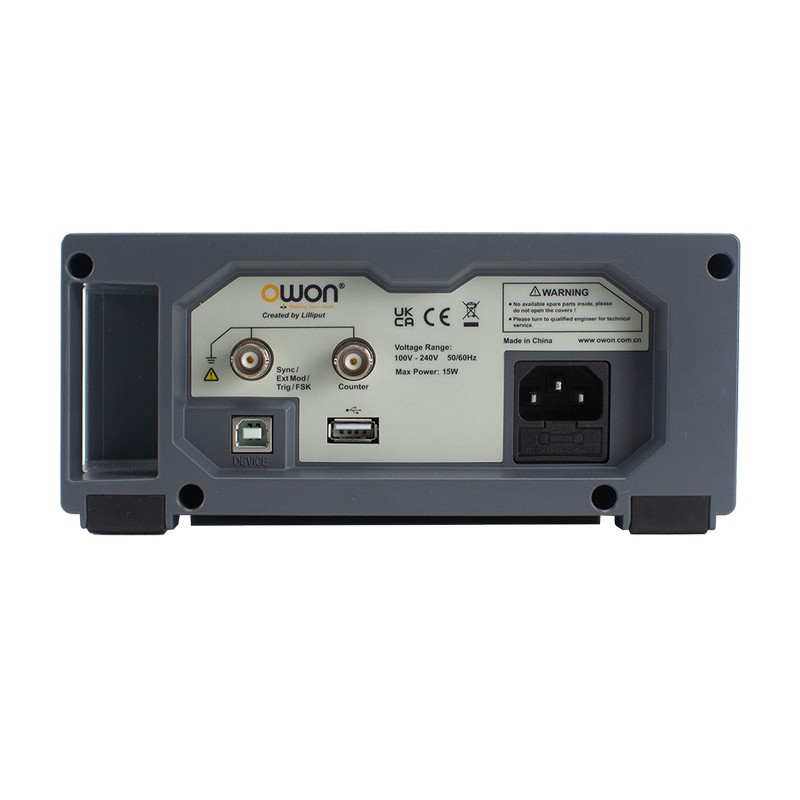

Input / Output
|
|

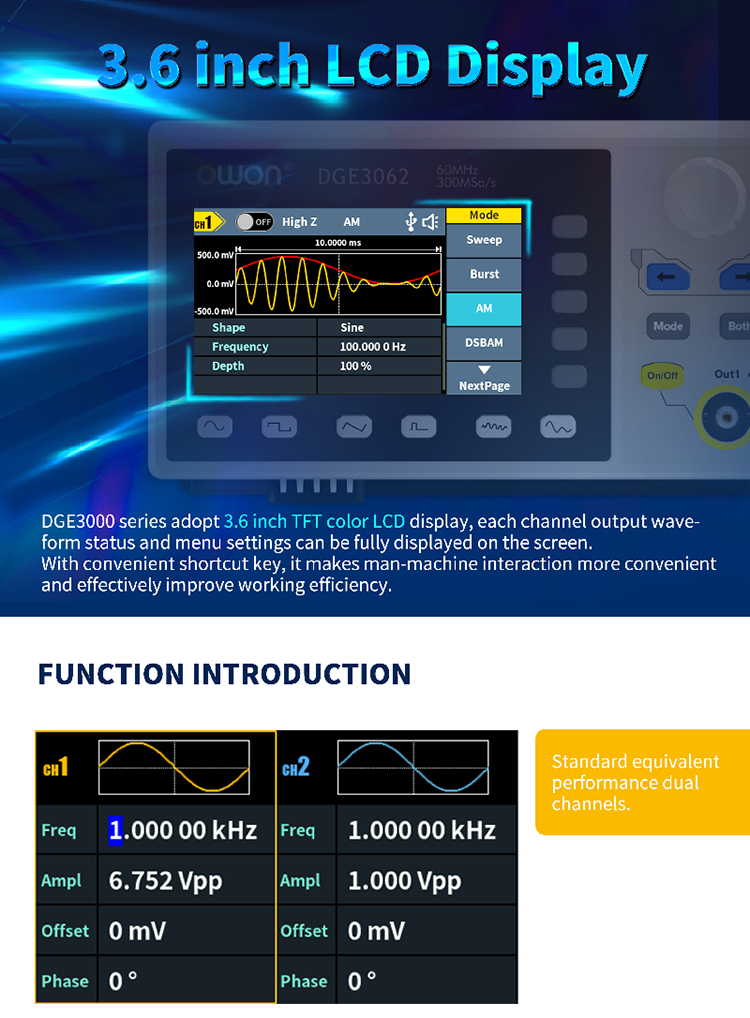

Display
|
3.6” LCD
|
|
Input mode
|
external modulation input,
external trigger input,
external reference clock input / output
|
|
Communication Interface
|
USB Host, USB Device
|
|

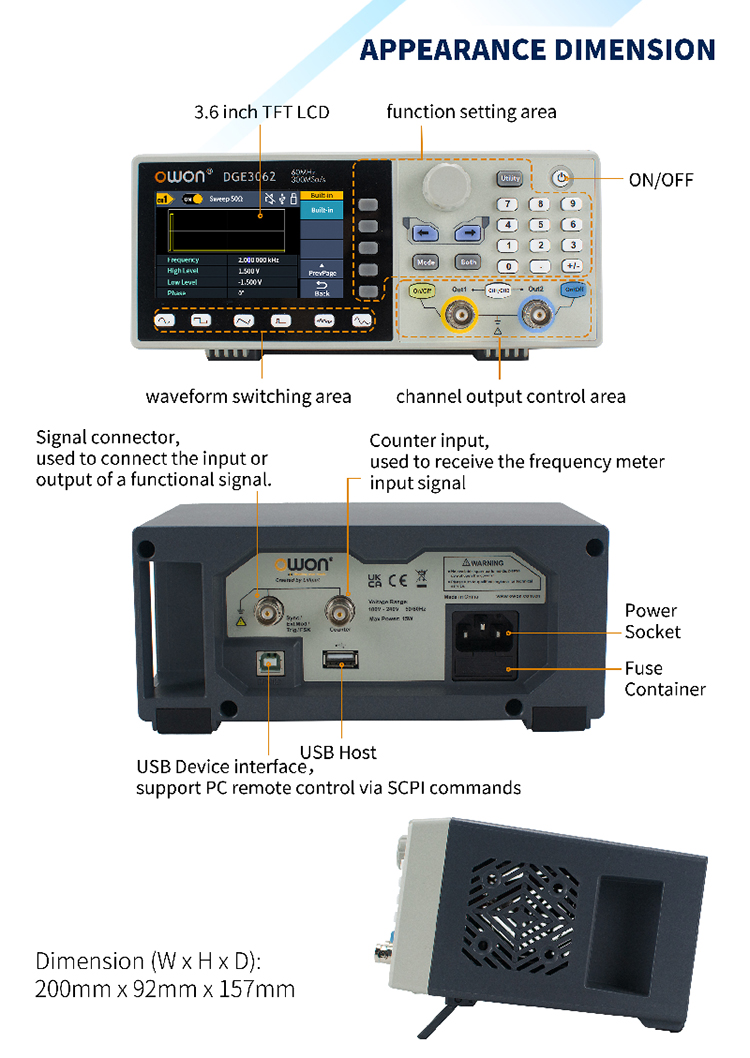

Mechanical specifications
|
|
Dimension (W×H×D)
|
200 x 92 x 157mm
|
|
Weight
(without package)
|
0.8kg
|

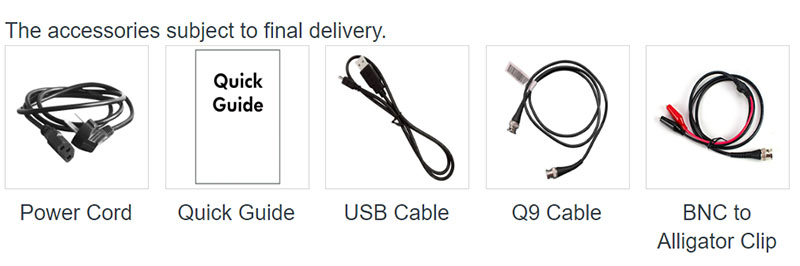

Accessories
