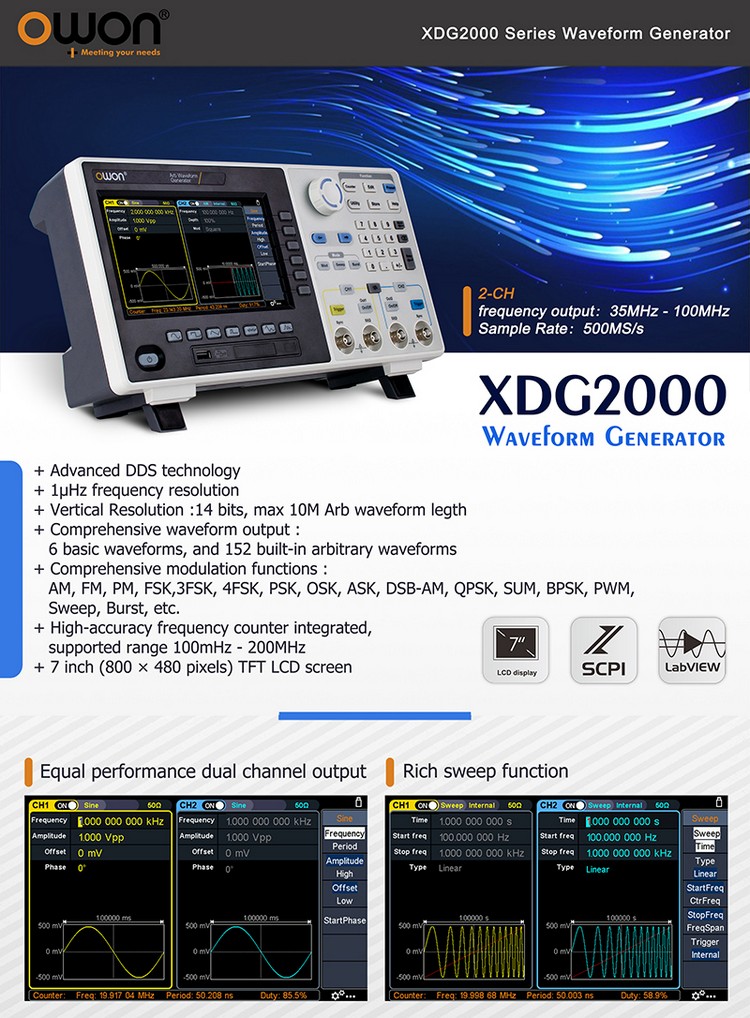

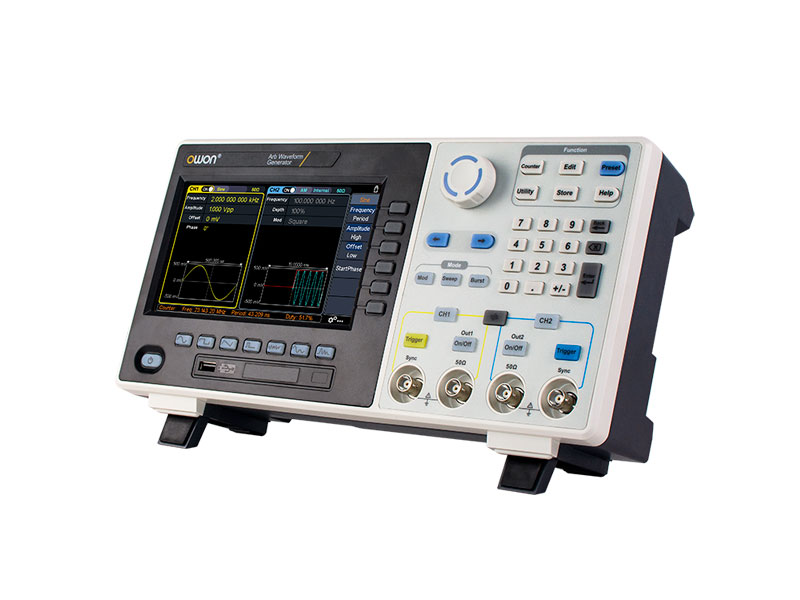

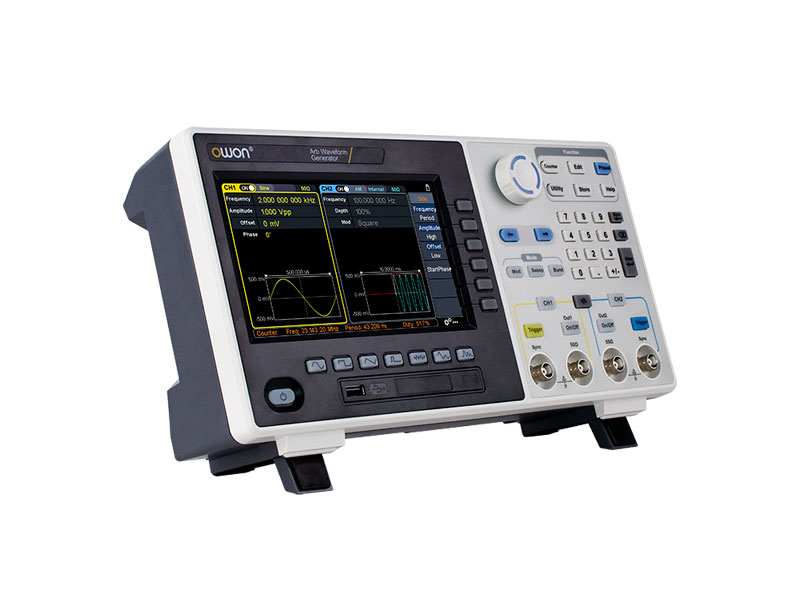

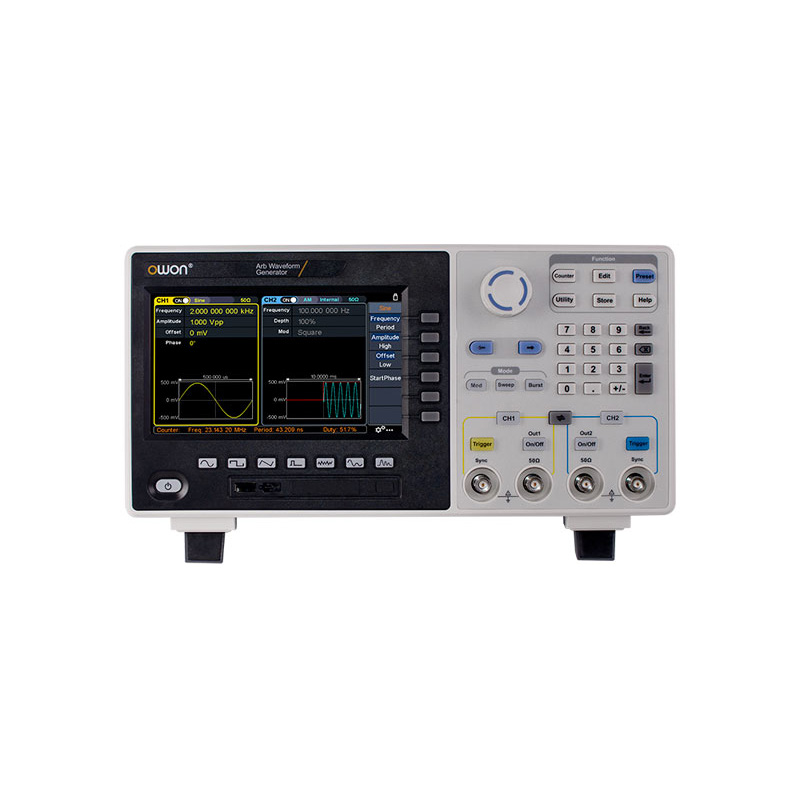

+ Max 100MHz frequency output
+ 500MSa/s Sample rate，Vertical resolution 1μHz
+ 14 bits Vertical Resolution，10Marb waveform length
+ Comprehensive waveform output : 6 basic waveforms, and 150 built-in arbitrary waveforms
+ Comprehensive modulation functions : AM, FM, PM, FSK,
3FSK, 4FSK, PSK, OSK, ASK, DSB-AM, QPSK,SUM，BPSK, PWM, Sweep, and Burst
+ High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
+ SCPI, and LabVIEW supported
+ 7 inch (800 × 480 pixels) LCD
Specifications
|
Model
|
XDG2100
|
XDG2080
|
XDG2060
|
XDG2035
|
XDG2030
|
|
Channel
|
2
|
|
Frequency Output
|
100MHz
|
80MHz
|
60MHz
|
35MHz
|
30MHz
|
|
Sample Rate
|
500MSa/s
|
|
Vertical Resolution
|
14 bits
|
|
Waveform
|
|
Standard Waveform
|
sine, square, pulse, ramp, noise, and harmonic
|
|
Arbitrary Waveform
|
exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 150 built-in waveforms, and user-defined arbitrary waveform
|
|
Frequency (resolution 1μHz)
|
|
Sine
|
1μHz-100MHz
|
1μHz-80MHz
|
1μHz-60MHz
|
1μHz-35MHz
|
1μHz-30MHz
|
|
Square
|
1μHz ~ 30MHz
|
1μHz ~ 30MHz
|
1μHz ~ 30MHz
|
1μHz ~ 15MHz
|
1μHz-15MHz
|
|
Pulse
|
1μHz ~ 25MHz
|
1μHz ~ 25MHz
|
1μHz ~ 25MHz
|
1μHz ~ 15MHz
|
1μHz-15MHz
|
|
Ramp
|
1μHz ~ 3MHz
|
1μHz ~ 3MHz
|
1μHz ~ 3MHz
|
1μHz ~ 3MHz
|
1μHz-3MHz
|
|
Noise (-3dB，typical)
|
100MHz
|
80MHz
|
60MHz
|
35MHz
|
30MHz
|
|
Arbitrary Waveform
|
1μHz ~15MHz
|
1μHz ~15MHz
|
1μHz ~15MHz
|
1μHz ~15MHz
|
1μHz-15MHz
|
|
Harmonic
|
1μHz ~50MHz
|
1μHz ~40MHz
|
1μHz ~30MHz
|
1μHz ~17.5MHz
|
1μHz-15MHz
|
|
Accuracy
|
±2ppm, 25°C±5°C
|
|
Waveform Length
|
2 points - 10M points
|
|
Amplitude
|
|
into 50Ω load
|
1mVpp ~ 10Vpp（≤ 25MHz）；
1mVpp ~ 5Vpp （≤60MHz）；
1mVpp ~ 2.5Vpp（≤100MHz）；
|
|
Modulation
|
|
Type
|
AM、DSB-AM、FM、PM、ASK、FSK、PSK、BPSK、QPSK、3FSK、4FSK、OSK、PWM、SUM
|
|
Frequency Counter
|
|
Function
|
Frequency， period, +width, -width, +duty, and -duty
|
|
Frequency Range
|
100mHz ~ 200MHz
|
|
Frequency Resolution
|
7 digits
|
|

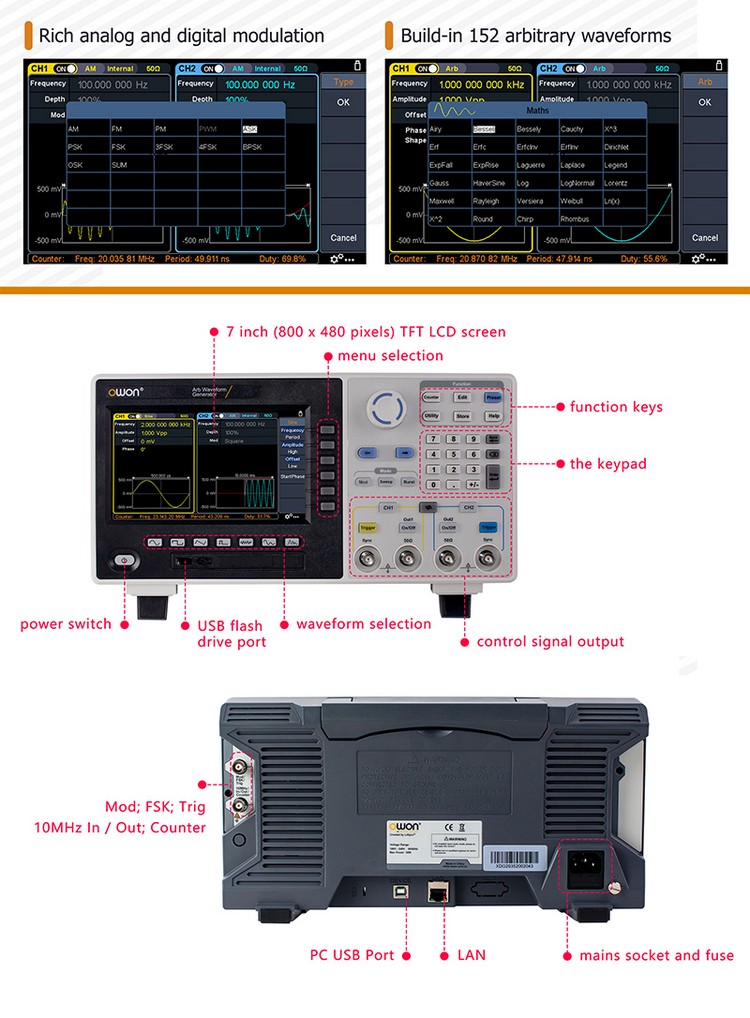

Input / Output
|
|
Input mode
|
frequency counter,
external modulation input,
external trigger input,
Internal clock output,
external reference clock input / output
|
|

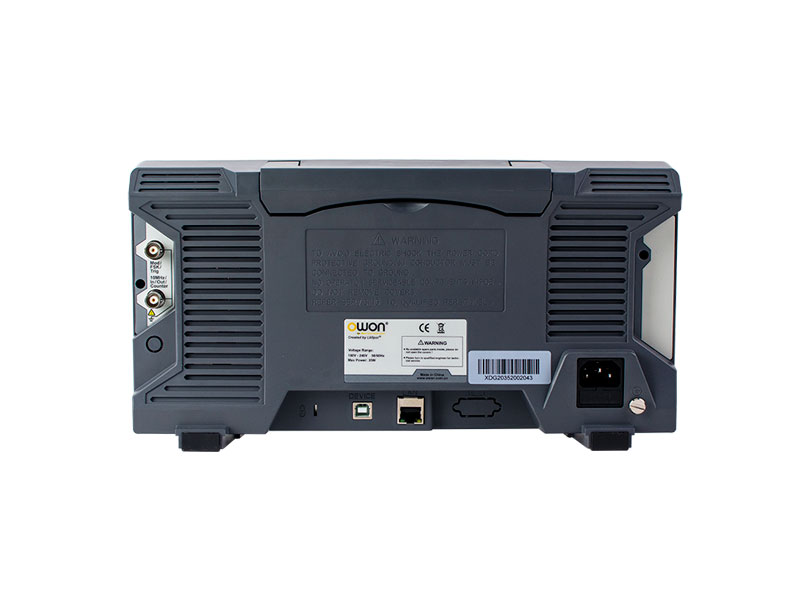

Communication Interface
|
USB Host, USB Device,LAN，RS232(optional)
|
|

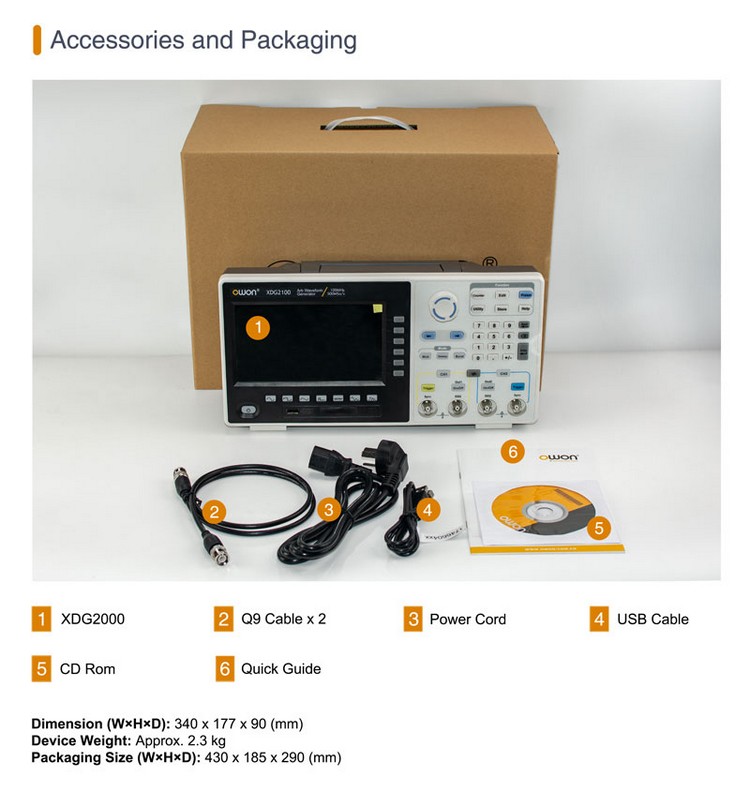

Mechanical specifications
|
|
Size
|
340mm x 177mm x 90mm
|
|
Weight
|
2.3kg
|
