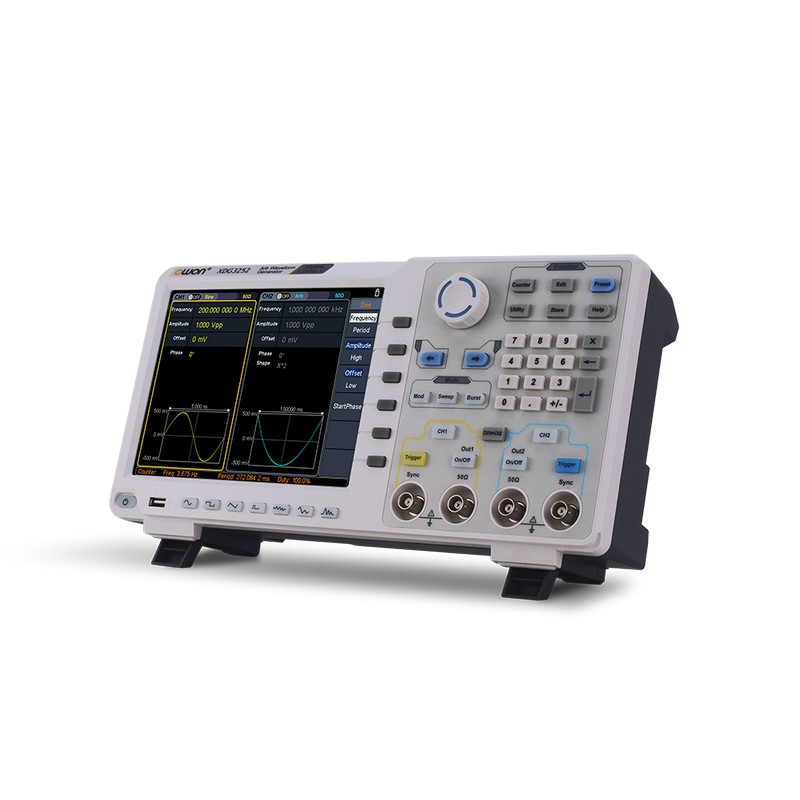

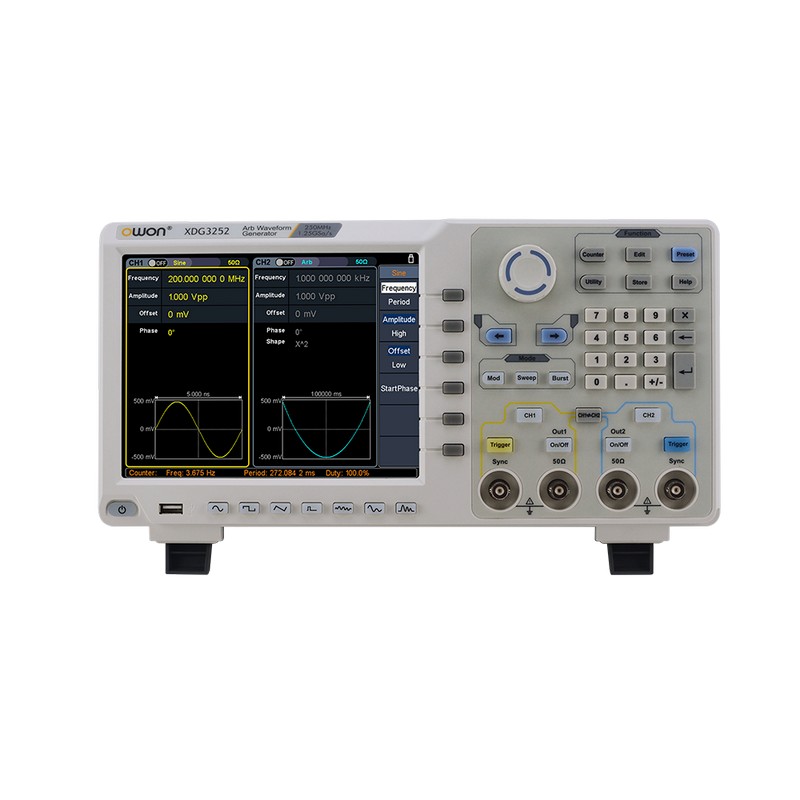

| Model |
XDG3252 |
XDG3202 |
XDG3162 |
XDG3102 |
XDG3082 |
| Channel |
2 |
| Frequency Output |
250MHz |
200MHz |
160MHz |
100MHz |
80MHz |
| Sample Rate |
1.25GSa/s |
| Vertical Resolution |
14 bits |

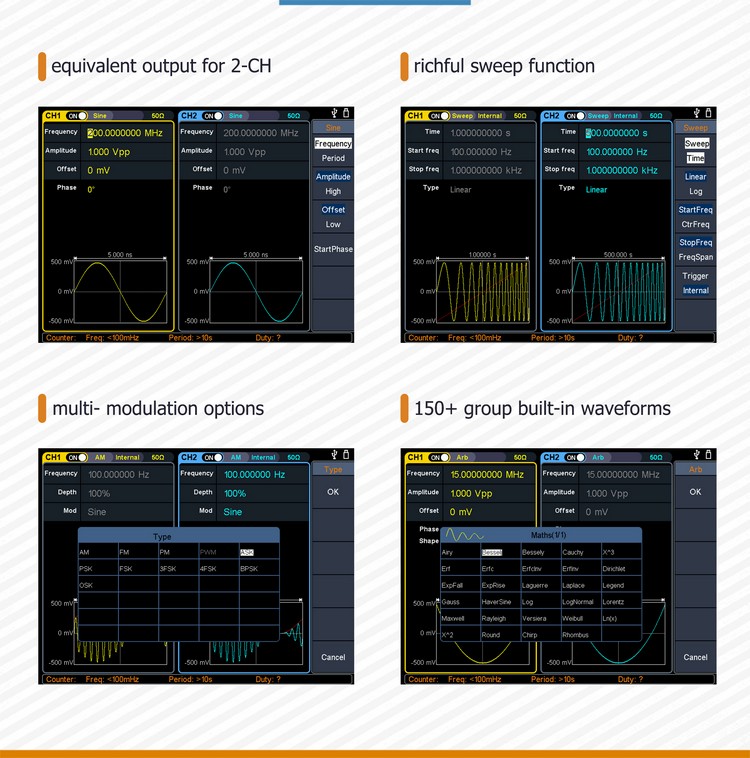

| Waveform |
| Standard Waveform |
sine, square, pulse, ramp, noise, and harmonic |
| Arbitrary Waveform |
exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 150 built-in waveforms, and user-defined arbitrary waveform |
| Frequency (resolution 1μHz) |
| Sine |
1μHz - 250MHz |
1μHz - 200MHz |
1μHz - 160MHz |
1μHz - 100MHz |
1μHz - 80MHz |
| Square |
1μHz - 50MHz |
1μHz - 40MHz |
1μHz - 30MHz |
| Pulse |
1μHz - 25MHz |
| Ramp |
1μHz - 5MHz |
| Harmonic |
1μHz - 125MHz |
1μHz - 100MHz |
1μHz - 80MHz |
1μHz - 50MHz |
1μHz - 40MHz |
| Noise |
120MHz (-3dB, typical) |
| Arbitrary Waveform |
built-in waveform: 1uHz - 15MHz
user-defined waveform: 1uHz - 50MHz |
| Accuracy |
±1ppm, 0°C - 40°C |
| Amplitude |
| into 50Ω load |
1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz)
1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz) |
| into open circuit or high-Z |
2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz);
2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz) |
| Resolution |
1mV or 4 digits |
| DC Offset |
Range (50Ω) |
±(5 Vpk - Amplitude Vpp/2) |
| Range (high-Z, open circuit) |
±(10 Vpk - Amplitude Vpp/2) |
| Accuracy |
±(1% of |setting| + 1mV + Amplitude Vpp x 0.5%) |
| Resolution |
1mV or 4 digits |
| Load Impedance |
50Ω (typical) |
| Accuracy |
±(1% of setting + 1 mVpp) (typical, 1kHz sine, 0V offset) |
|
| Sine Wave Spectrum Purity |
Harmonic Distortion
Typical (0dB) |
DC - 1MHz: <-65dBc
1MHz - 10MHz: <-60dBc
10MHz - 120MHz: <-50dBc
120MHz - 200MHz: <-45dBc |
| Total Harmonic Distortion |
＜0.05 %, 10 Hz to 20 kHz, 1 Vpp |
Spurious (non-harmonic),
Typical (0dB) |
≤10MHz: <-70dBc
>10MHz: <-70dBc + 6dB/ octave |
Phase Noise
Typical (0 dBm, 10 kHz deviation) |
10MHz: ≤-110dBc/Hz |
| Square |
| Rise/Fall Time |
<5ns |
| Overshoot |
<3% |
| Duty Cycle |
50.0% (fixed) |
| Jitter (rms) |
300ps + 100ppm |
| Pulse |
| Pulse Width |
12ns - 996875s |
| Leading/Trailing Edge Time |
≧7ns |
| Overshoot |
<3% |
| Jitter (rms) |
300ps + 100ppm |
| Ramp |
| Linearity |
≤1% of peak output (typical, 1kHz, 1 Vpp, 50% symmetry) |
| Symmetry |
0% to 100% |
| Harmonic |
| Harmonic Order |
≤16 |
| Harmonic Type |
even, odd, all, user |
| Harmonic Amplitude |
could be set for all the harmonics |
| Harmonic Phase |
| Arbitrary |
| Waveform Length |
2 points - 1M points |
| Vertical Resolution |
14 bits |
| Minimum Rise/Fall Time |
<7ns |
| Jitter (rms) |
3ns |
|
| Modulation |
| Type |
AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, sweep, and burst |
| AM |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal / external |
| Modulating Waveform |
sine, square, ramp, noise, and arbitrary |
| Depth |
0.0% - 100.0% |
| Modulating Frequency |
2 mHz - 100 kHz |
| FM |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal / external |
| Modulating Waveform |
sine, square, ramp, noise, and arbitrary |
| Modulating Frequency |
2 mHz - 100 kHz |
| PM |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal / external |
| Modulating Waveform |
sine, square, ramp, noise, and arbitrary |
| Phase Deviation |
0° - 180° |
| Modulating Frequency |
2 mHz - 100 kHz |
| PWM |
| Carrier Waveform |
pulse |
| Source |
internal / external |
| Modulating Waveform |
sine, square, ramp, noise, and arbitrary |
| Width Deviation |
0 ~ minimum (pulse duty ratio, 100% - pulse duty ratio) |
| Modulating Frequency |
2 mHz - 100 kHz |
| FSK / 3FSK / 4FSK |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal / external |
| Modulating Waveform |
square with 50% duty cycle |
| Key Frequency |
2 mHz - 1MHz |
| PSK |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal / external |
| Modulating Waveform |
square with 50% duty cycle |
| Key Frequency |
2 mHz - 1MHz |
| OSK |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal |
| Oscillation Time |
square with 50% duty cycle |
| Key Frequency |
2 mHz - 1MHz |
| ASK |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal / external |
| Modulating Waveform |
square with 50% duty cycle |
| Key Frequency |
2 mHz - 1MHz |
| BPSK |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Source |
internal |
| Modulating Waveform |
square with 50% duty cycle |
| Key Frequency |
2 mHz - 1MHz |
| Sweep |
| Carrier Waveform |
sine, square, ramp, and arbitrary (except DC) |
| Type |
linear, and log |
| Direction |
up, and down |
| Sweep Time |
1 ms to 500s, ± 0.1% |
| Trigger Source |
internal, external, and manual |
| Burst |
| Carrier Waveform |
sine, square, ramp, pulse, and arbitrary (except DC) |
| Burst Count |
1 to 50,000 period, infinite, gating |
| Internal Period |
10 ns - 500 s |
| Gated Source |
external trigger |
|
| Frequency Counter |
| Function |
frequency period, +width, -width, +duty, and -duty |
| Frequency Range |
100mHz - 200MHz |
| Frequency Resolution |
7 digits |

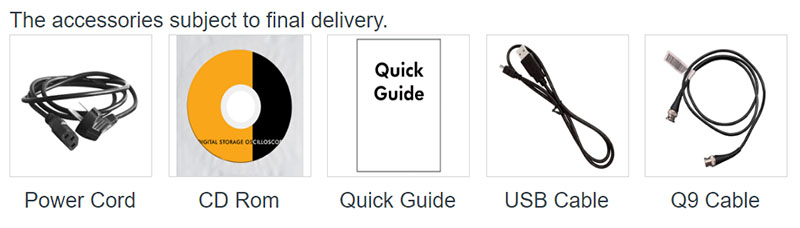

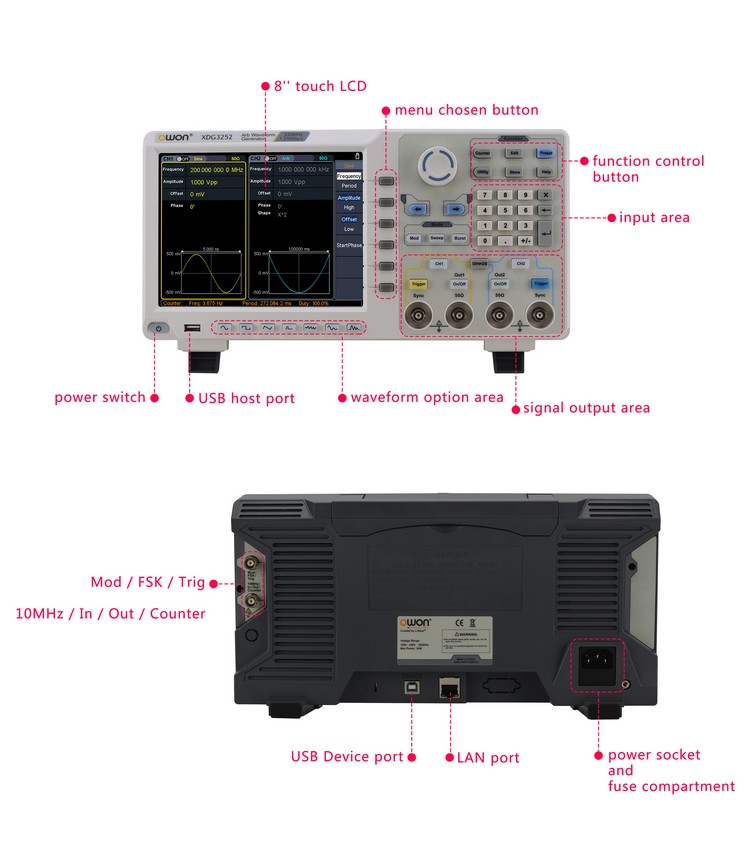

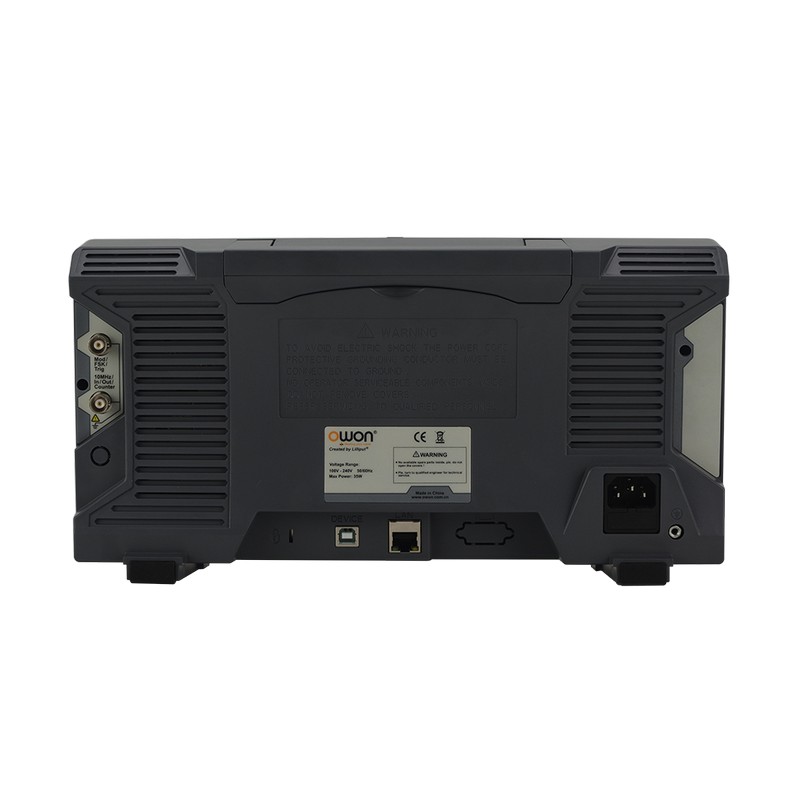

| Input / Output |
| Display |

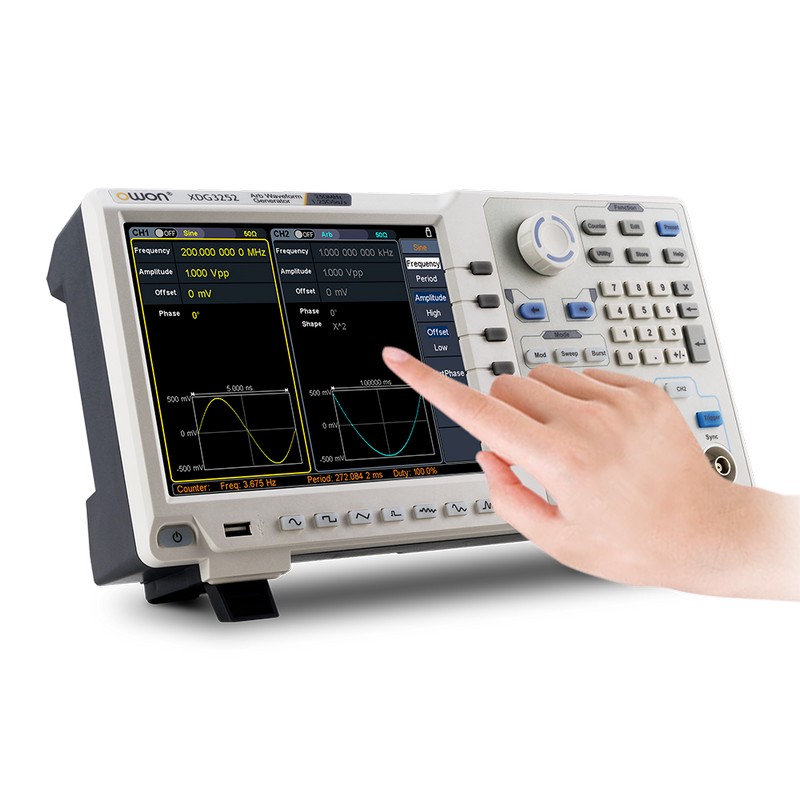

8”800 x 600 pixels touch screen LCD |
| Type |
frequency counter, external modulation input,
external trigger input,
external reference clock input / output |
| Communication Interface |
USB Host, USB Device, and LAN |
| Dimension (W×H×D) |
340 x 177 x 90 (mm) |
| Weight (without package) |
2.50kg |
