We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON mso series la with digital oscilloscope, logic analyzer oscilloscope, logic analyzer, 16 channel oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

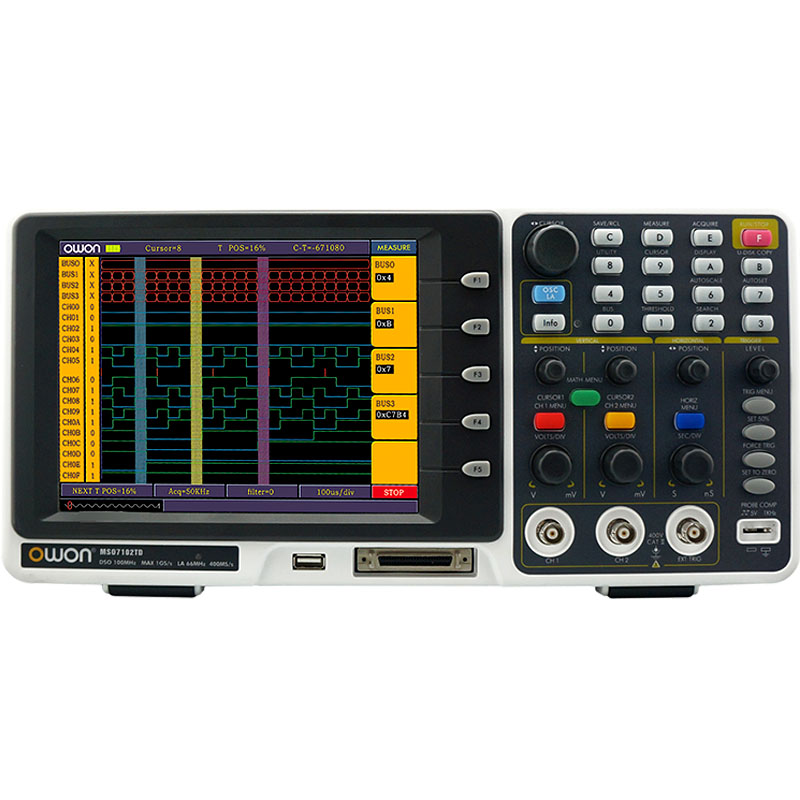

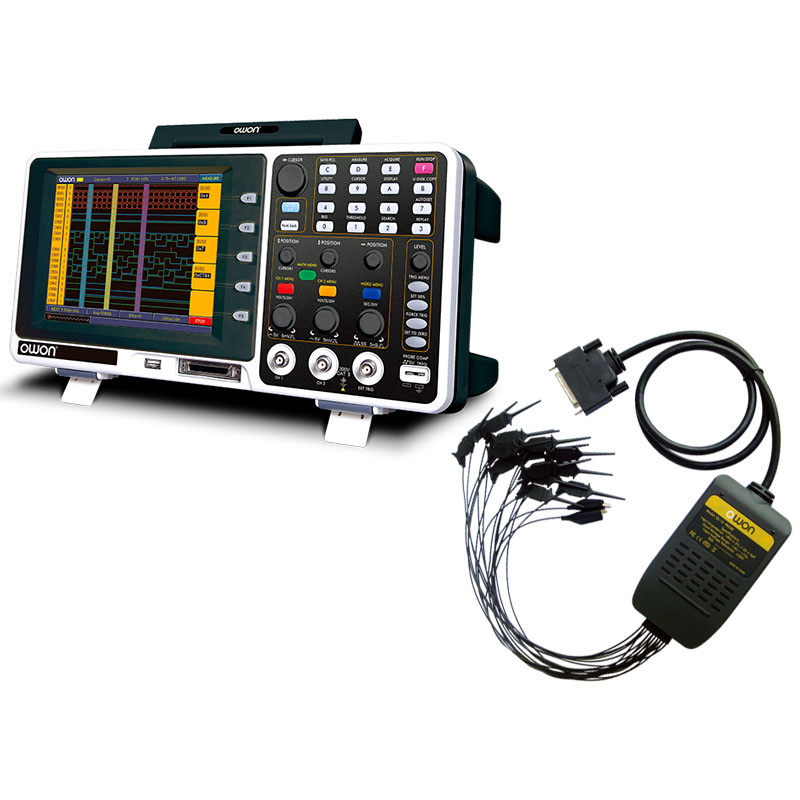

1. Oscilloscope & 16-channel logical analyzer, support multiple trigger mode including bus, status, data alignment, data width, distributed queue and etc.
2. Optional Li-on battery support floating measurement, convenient for mobile test.
Specifications
| Model |
MSO7062TD |
MSO7102TD |
MSO8102T |
MSO8202T |
| Bandwidth |
60MHz |
100MHz |
200MHz |
| SampleRate (realtime) |
1GS/s |
2GS/s |
| Display |
8.0'' color LCD ,640 × 480 pixels |
| Channel |
dual + external trigger |
| Horizontal Scale (s/div) |
2ns/div～100s/div, step by 1～2～5 |
1ns/div～100s/div,
step by 1～2～5 |
| Vertical Sensitivity |
2mV/div - 10V/div |
| Vertical Resolution (A/D) |
8bits (2 channels simultaneously) |
| Trigger Mode |
Edge, Video, Alternate, Pulse, and Slope |
| Acquisition Mode |
Normal,Peak Detect,and Average |
| Record Length |
2M points |
| Waveform Storage |
4 waveforms |
| Waveform Math |
＋, －, ×, ÷, FFT |

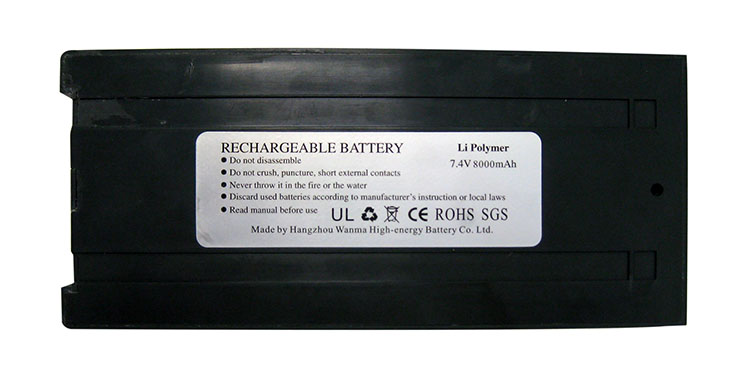

| Battery |
7.4V 8000mAh (optional) |
| Dimensions (W × H × D) |
370 × 180 × 120 (mm) |
| Weight (without package) |
2.20 kg |
| Logic Analyzer Performance Specifications |
| Model |
MSO7062TD |
MSO7102TD |
MSO8102T |
MSO8202T |
| Sample Rate (real time) |
20S/s - 2GS/s |
| Bandwidth |
100MHz |
200MHz |
| Channel |
16 |
| Record Length |
4M points |

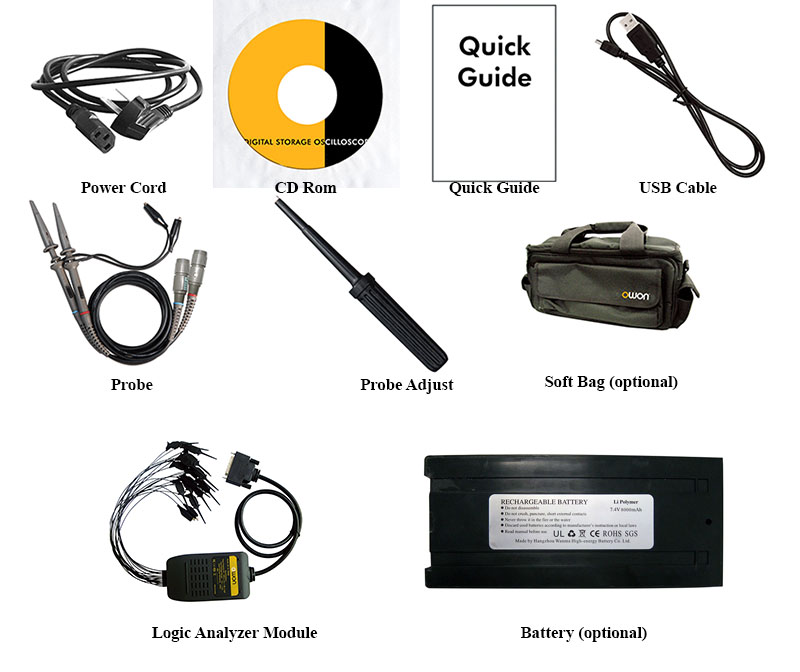

Accessories
